EXP

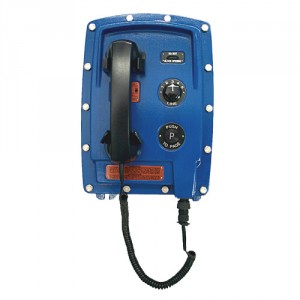

Guardian Telecom’s EXP Explosion Proof Page/Talk Stations are designed to provide communication in Class I and Class II Division 1 areas.
Class I and Class II Division 1 areas are deemed to be hazardous due to the presence of flammable gasses, vapors, dust or fibers.
Easy to operate paging with the versatility of one or five talk lines. Individuals can be paged from any station and two or more people can communicate simultaneously on any available talk line.
Manual
Specifications
Certifications
Images
Standards Compliance
CSA (”C” and “US”) 1259267
CSA (”C” and “US”) 1259267
For EXP, MLX 300 & MLX 350 Models
Class I, Div. 1, Groups B, C and D;
Class II, Div. 1, Groups E, F and G
• Canada: Class l Zone 1 Ex d llB+H2 T5
• United States: Class I Zone 1 AEx d(ia) llB+H2 T5; Class II Zone 21
For EXP-A, EXP-TBA, EXP-TBB, MLX 330, MLX 331, MLX 332 & MLX 300 Models
Class I, Div. 1, Groups B, C and D;
Class II, Div. 1, Groups E, F and G
• Canada: Class l Zone 1 Ex d llB+H2 T5
• United States: Class I Zone 1 AEx d llB+H2 T5; Class II Zone 21
CLASS 4818 02 – SIGNAL APPLIANCES – Audible – For Hazardous Locations
CLASS 4818 82 – SIGNAL APPLIANCES – Audible – For Hazardous Locations Certified to US Standards
CSA (”C” and “US”) Certificate 1259267
Product Features
- Approved for Class I and Class II, Division 1 areas
- Water tight and dust tight, NEMA 4X (IP56) explosion proof enclosure
- Power supply 24 VDC or 24/120/230 VAC
- Cast aluminum base and faceplate (copper free)
- Page-switch on faceplate
- Noise canceling microphone
- Electronic hook switch provides durability
- Durable powder coat paint (standard color shown)
- Side tone adjustment
- 12 watt speaker amplifier
- Monitors ambient noise and adjusts speaker volume automatically
- Removable screw and plug Combicon connectors allow for ease of installation
- Can replace or be added to existing systems provided by several other manufacturers
- Single line or multi line (5 lines) models
- Eight models to select from
- EXP Single Line Paging Station, 120 VAC – Order number: P5930
- EXP Single Line Paging Station, 230 VAC – Order number: P5931
- EXP Single Line Paging Station, 24VAC – Order number: P5932
- EXP Single Line Paging Station, 24 VDC – Order number: P5933
- EXP Five Line Paging Station, 120 VAC – Order number: P5935
- EXP Five Line Paging Station, 230 VAC – Order number: P5936
- EXP Five Line Paging Station, 24 VAC – Order number: P5937
- EXP Five Line Paging Station, 24VDC – Order number: P5938
