HDE-21-V

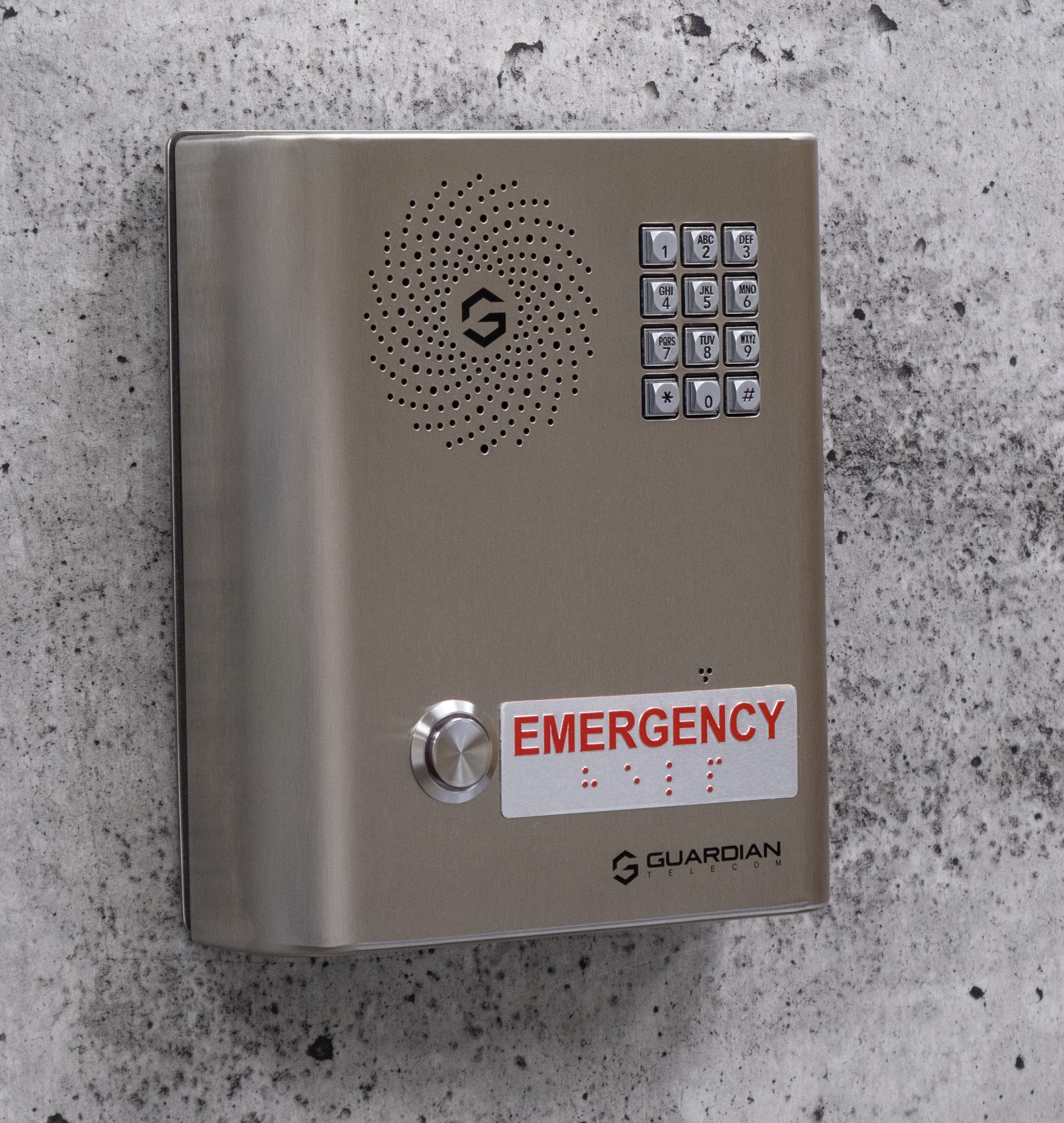

Guardian Telecom’s new and updated SIP-enabled HDE-21-V Emergency & Help Point VoIP telephone is a wall unit with a single push-to-call button with keypad, and a network configurable auxiliary relay which is standard to all HDE-V models. This model is compatible with OGP Series housings.
HDE-V telephones are intended for use in public areas where direct assistance or hands-free communication is required.
Calls can be initiated from the telephone or from the monitoring station. HDE-V VoIP telephones are capable of remote monitoring, reporting the status of each unit and informing personnel of a malfunction.
Manual
Specifications
Certifications
Images
Standards Compliance
FCC Part 15† Class A
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
IEC 61000-6-2: 2005
Industry Canada – 1012A-601B
Hearing-aid Compatible Equipment
Other
Telephone Receiver Volume Control
Registration 1012A-601B
VoIP Support / Tools / Firmware
Product Features
- Supports CISCO SRST (User selectable).
- Supports Mitel Resiliency (User Selectable).
- Adaptive full-duplex voice operation
- PoE 802.3af enabled (Power-over-Ethernet) or alternate power source
- Compatible with SIP RFC 3261 compliant IP-PBX and Cloud based servers
- Auxiliary Relay to control external devices with multiple control modes (Refer to document P007402 – VoIP Setup and Configuration Guide)
- Network web management interface
- Guardian Discovery Utility makes it easy to detect, locate and launch the web-based configuration screens
- Web Interface provides full configuration over device. Some key features include:
- Microphone default level settings
- LED activation control, (User selectable), (2 – LEDs)
- Relay activation management.
- Call timers
- Event Management – Real Time Monitoring.
- Product Updates.
- Product Automated configuration
- HDE-V models with an “Emergency” push button – depressing the button once automatically rings a designated number to summon help
- HDE-V models with a “Push To Call” button – depress the button once and it allows the user to dial out or it will dial a pre-programmed number. A call may be initiated from the phone or from the monitoring station
- Control Relay – network configurable auxiliary relay standard on all models
- Night ringer mode – refer to product manual
- 316 Stainless Steel – 16 Gauge with #4 Brushed Finish, corrosion resistant enclosures
- LED – There are up to 2 LED indicators which can be set to activate on specific operations status or remote controlled
- ADA (American Disability Act) compliant label
- Speaker – hands free operation
- Operating temp: -40˚ to +140˚F ( -40˚ to +60˚C )
- Adaptive Echo Cancelling – Self learning echo reduction system
