P-AM15XD2

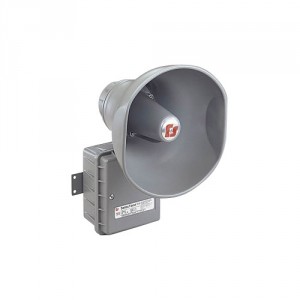

UL and cUL listed and CSA certified, the Federal Signal model P-AM15XD2 is an 8 ohm, re-entrant, Type 4X speaker for use in public address or paging applications.
The P-AM15XD2 features a rugged cone and projector constructed of spun aluminum.
Hazardous Area Speakers & Ringers carried by Guardian Telecom meet the rigorous demands of applicable environments while maintaining the appropriate safety standards. Hazardous Areas are divided into two divisions:
Division 1
“An area where ignitable concentrations of flammable gases, vapors or liquids can exist all of the time or some of the time under normal operation conditions.” (NEC/CEC)
Division 2
“Where ignitable concentrations of flammable gases, vapors or liquids are not likely to exist under normal operation conditions.” (NEC/CEC)
Guardian Telecom manufactures supplies and distributes a wide selection of Explosion Proof, Hazardous Area, ATEX-IEC and General Area Ringers and loudspeakers from leading manufacturers around the world to meet the unique demands of Industrial Communication projects.
Guardian’s represents DNH, E2S, Federal Signal, MEDC and TOA, and has access to an extensive range of other world class leading manufacturers.
Guardian trained and qualified personnel work with customers to specify individual product or total project solutions and make informed purchasing decisions based on budget, technology, applications and relevant standards.
Specifications
Images
Standards Compliance
UL 1480 Listed
UL 1480 Listed
1.1 These requirements cover speakers for indoor and/or outdoor use in dry, damp, wet, or underwater locations and are intended for one or more of the following:
a) Fire alarm systems in accordance with the National Electrical Code, NFPA 70, and the National Fire Alarm Code, NFPA 72, providing emergency voice/alarm occupant notification;
b) Commercial and professional audio systems providing non-emergency sound reinforcement and reproduction in accordance with NFPA 70 (this includes equipment for institutional, industrial use);
c) Non-fire emergency voice-warning systems in accordance with NFPA 70; examples of non-fire emergency-warning systems include, but are not limited to:
1) Critical process monitoring (nuclear plant, oil refinery, hazardous chemical processing);
2) Distress alert systems (help for handicapped, for life safety, for rape, for robbery);
3) Crowd control in public places (sporting arena, theater, shopping mall, transportation center); and
4) Non-fire emergency voice-systems covered by the Life Safety Code, NFPA 101.
d) Underwater speakers in accordance with Article 680 of NFPA 70. An underwater speaker is not to be used in a fire alarm system or as an emergency (non-fire) voice-warning system.
Visit manufacturer’s website or contact manufacturer for details.
UL and cUL Listed and CSA Certified - Hazardous Area
Class l, Division 2, Groups A, B, C and D
Class ll, Division 2, Groups F and G
Class lll
Enclosure rating; Type 4X
Visit manufacturer’s website or contact manufacturer for details.
Product Features
- Manufactured by Federal Signal Corporation
- Rated for Class I, Division 2; Class II, Division 2; Class III
- Eight ohm
- 15 watt
- Re-entrant horn design
- Rugged cones and projectors constructed of spun aluminum
- All external surfaces are sealed with a gray powder coat paint
- Wall mount
- 60 degree sound dispersion pattern
- Two 1/2 inch conduit openings
- Type 4X enclosure
- Operating temperature -40°F to +151°F (-40°C to +66°C)
- UL 1480 approved and cUL listed
- Order number: P-AM15XD2
