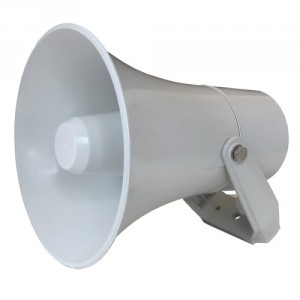

The P-HP-15(T) is a 15W, plastic, IP67, high quality weatherproof horn speaker. Small and lightweight it can be installed in any harsh environment, both indoor and outdoor.

To meet your requirements that fall outside of hazardous rated areas, Guardian Telecom offers a wide variety of General Area, indoor/outdoor exterior Speakers & Ringers. From metal to plastic and horn to ceiling styles.

Guardian Telecom manufactures supplies and distributes a wide selection of Explosion Proof, Hazardous Area, ATEX-IEC and General Area Ringers and loudspeakers from leading manufacturers around the world to meet the unique demands of Industrial Communication projects.

Guardian’s represents DNH, E2S, Federal Signal, MEDC and TOA, and has access to an extensive range of other world class leading manufacturers.

Guardian trained and qualified personnel work with customers to specify individual product or total project solutions and make informed purchasing decisions based on budget, technology, applications and relevant standards.

Specifications

Images

Standards Compliance

Product Features

• Manufactured by DNH
• Pressure chamber loudspeaker
• 15 W
• ASA / RAL 7035
• Brackets and all outside nuts are stainless steel
• 70/100 Volt combined transformer:

Primary connections:

White : Green   70 Volt line

White : Red   100 Volt line

Secondary nominal tappings:

C : 4   15.0 W

C : 3   7.5 W

C : 2   4.0 W

C : 1   2.0 W

• 8 ohm version available
• IP-rating 67
• Rated / maximum power 15 W / 20 W
• SPL 1W/1m 108 dB
• SPL rated power 118 dB
• Effective frequency range 330 – 8000 Hz
• Dispersion (-6dB) 1kHz / 4kHz 130° / 35°
• Operating temperature -58°F to +194°F (-50°C to +90°C)
• Order number: P-HP-15(T)

Markets

• Access/Entry
• Help Point
• Public Safety
• Correctional
• Recreation & Amusement
• Hospitality
• Parks
• Air
• Ground
• Marine
• Rail
• Handling & Manufacturing
• Infrastructure
• Processing
