PPR

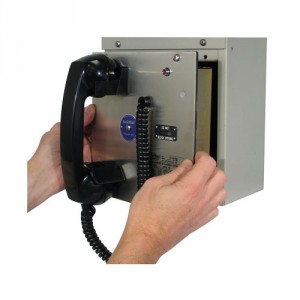

Guardian Telecom’s PPR Page Station Amplifier Replacement Modules are designed to deliver a safe, reliable, and cost effective solution for industries that require additions, repairs or replacements to their existing ‘Page/Party®†‘ or Third-Party modules, communication and other unitized audio systems.
Direct compatibility with both single and multi-line third-party page stations, allows end users to protect their original system investment by replacing failed or aged units on the fly without even having to power down the entire communication system.
In addition to Amplifier & Handset Amplifier Page Station replacement modules, complete Guardian Page/Talk stations can be implemented into current expanding third-party systems, offering clients continued usage of present systems while benefiting from Guardian Telecom’s Page/Talk station features and quality.
†Page/Party® is a registered Trademark of GAI-Tronics® Corporation. Any reference to GAI-Tronics® does not imply their endorsement of Guardian Telecom products.
Manual
Specifications
Certifications
Images
Standards Compliance
CSA (”C” and “US”) 1289924
CSA (”C” and “US”) 1289924
For PSA, PTI, PTJ & PTO Models
• Canada:
Class I, Division 2, Groups A, B, C and D;
Class II, Groups E, F and G; T6
• United States:
Class I, Divison 2, Groups A, B, C and D;
Class II, Groups E, F and G; Class I Zone 2, T6
For PPA, PPR, PTA, PTR, PTD & PDA Models
• Canada:
Class I, Division 2, Groups A, B, C and D; T6
• United States:
Class I, Divison 2, Groups A, B, C and D; Class I Zone 2, T6
CLASS 4818 02 – SIGNAL APPLIANCES – Audible – For Hazardous Locations
CLASS 4818 82 – SIGNAL APPLIANCES – Audible – For Hazardous Locations Certified to US Standards
CSA (”C” and “US”) Certificate 1289924
Product Features
- Curly handset Cord
- Push-to-Page button on handset
- Noise canceling microphone
- Compatible with both single or multi-line Page/Party®† and other Third-Party Page systems
- Ease of installation with 16 or 24 pin Amphenol quick connector
- Power supply 24 VDC or 24/120/230 VAC (specify when placing order)
- Corrosion protected and powder coated faceplate
- Captive screws for ease of installation
- Ambient noise sensor kit for outdoor enclosure (models P5509 & P5511)
- Service temperature range from -40˚ to +140˚F (-40˚ to +60˚C)
- Six models to select from
- PPR – Amplifier module, ambient noise sensor on faceplate – Order number: P5506
- PPR – Amplifier module, ambient noise sensor on faceplate, headset connector receptacle* – Order number: P5507
- PPR – Amplifier module – Order number: P5508
- PPR – Amplifier module, ambient noise sensor kit for outdoor enclosure – Order number: P5509
- PPR – Amplifier module, headset connector receptacle* – Order number: P5510
- PPR – Amplifier module, ambient noise sensor kit for outdoor enclosure, headset connector receptacle* – Order number: P5511
*Not for use in Hazardous Areas
Controls
- Speaker volume output (adjustable from front panel)
- Microphone gain
- Receiver level adjustment
- Side tone adjustment
- Ambient noise level sensor (optional)
