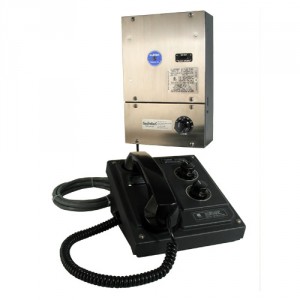

PTD/PDA
Guardian Telecom’s PTD/PDA Page/Talk Desk Station/Amplifier Station is designed to provide safe, reliable and cost effective communications in harsh industrial environments.
The PTD/PDA provides easy to operate paging with the versatility of one or five talk lines. Individuals can be paged from any station and two or more people can communicate simultaneously on any available talk line.
Manual
Specifications
Certifications
Images
Standards Compliance
CSA (”C” and “US”) 1289924
CSA (”C” and “US”) 1289924
For PSA, PTI, PTJ & PTO Models
• Canada:
Class I, Division 2, Groups A, B, C and D;
Class II, Groups E, F and G; T6
• United States:
Class I, Divison 2, Groups A, B, C and D;
Class II, Groups E, F and G; Class I Zone 2, T6
For PPA, PPR, PTA, PTR, PTD & PDA Models
• Canada:
Class I, Division 2, Groups A, B, C and D; T6
• United States:
Class I, Divison 2, Groups A, B, C and D; Class I Zone 2, T6
CLASS 4818 02 – SIGNAL APPLIANCES – Audible – For Hazardous Locations
CLASS 4818 82 – SIGNAL APPLIANCES – Audible – For Hazardous Locations Certified to US Standards
CSA (”C” and “US”) Certificate 1289924
Product Features
- One common amplifier unit compatible with both single line or five line Guardian Page/Talk, and Gai-Tronics Page/Party® stations†
- Power supply 24 VDC or 24/120/230 VAC
- Approved for Class l & ll, Division 2 hazardous areas
- Black PVC cover on deskset 16 gauge steel zinc dichromate plated deskset base
- Corrosion protected and powder coated faceplate on power supply/amplifier
- Steel zinc dichromate plated enclosure on power supply/amplifier
- Internal speaker on deskset
- External speaker hook-up on power supply/amplifier
- Push-to-page switch on handset
- Noise canceling microphone
- Electronic hook switch provides maximum durability
- Compatible with most other manufacturer’s systems
- Four models to select from
- PTD Desk Station complete with PDA Power Supply Amplifier, Single Line, Ambient Noise Sensor – Order number: P5590
- PTD Desk Station complete with PDA Power Supply Amplifier, Five Line, Ambient Noise Sensor – Order number: P5591
- PTD Desk Station complete with PDA Power Supply Amplifier, Single Line – Order number: P5592
- PTD Desk Station complete with PDA Power Supply Amplifier, Five Line – Order number: P5593
CONTROLS
- Microphone gain, receiver volume, side tone and internal speaker volume on deskset
- External speaker (if used) volume on power supply/amplifier
- Optional ambient noise sensor adjusts speaker volume automatically
†Page/Party® is a registered Trademark of GAI-Tronics® Corporation. Any reference to GAI-Tronics® does not imply their endorsement of Guardian Telecom products.
