WRT-10-H

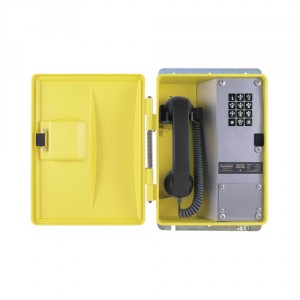

Guardian’s WRT-10-H Hazardous Area Outdoor Industrial Weather Resistant analog telephones are designed for use in Class I, Division 2 hazardous areas where the atmosphere may be hazardous due to the presence of gases, dust, or fibers.
Renowned for safety and durability, from the phone’s electronics to their sturdy enclosure constructed of engineering polymer.
WRT-10-H models are built for demanding applications where reliability is essential.
Manual
Specifications
Certifications
Images
Standards Compliance
CSA (”C” and “US”) 1545708
CSA (”C” and “US”)
Class I, Division 2, Groups A, B, C and D;
CLASS 4838 81 – TELECOMMUNICATION EQUIPMENT – For Hazardous Locations – Certified to US Standards
CLASS 4838 01 – TELECOMMUNICATION EQUIPMENT – For Hazardous Locations
CSA (”C” and “US”) Certificate 1545708 (LR 6557)
FCC TCB
Grant of FCC Equipment Certification
Certification Under CFR 47 Part 68 – Connection of Terminal Equipment to the telephone network
Subject to the provisions of Part 68 of the FCC Rules and Regulations. Certification is Hereby Granted for the equipment listed herein. Any change in model number or trade name requires amendment of certification. Each piece of equipment bearing the listed trade name(s) and model number(s) shall be labeled in accordance with the provisions of Section TSB168.
FCC TCB Certificate HQHCAN-22517-TE-E
Industry Canada – 1012 4041 A
Hearing-aid Compatible Equipment
Registration – 1012 4041 A
Product Features
- Teleseal keypad/Curly handset cord/Heavy duty handset
- Magnetic reed hook switch to reduce parts subject to wear
- Encapsulated circuitry impervious to water and particles
- Nylon hinge to prevent jamming caused by salt or corrosion
- Spring-loaded door for automatic closure
- Surge arrestor to prevent voltage spike damage
- Heavy duty industrial handset
- Volume control to ensure communication in noisy environments
- Electret noise reducing microphone for clear communication
- Service temperature range from -40˚ to +140˚F ( -40˚ to +60˚C )
- Waterproof connections & stainless steel fittings for longer life
- Compact durable enclosure with mounting plate for easy mounting
- Modular parts for easy service
- Hearing aid compatible
- Electronic ringer for reliability
- Yellow enclosure for high visibility. Optional Grey enclosure and other custom options available
- Weather, dust & corrosion resistant
- Tone or pulse dialing for universal configuration
- Easily connected to any single line analog CO or PABX telephone line
- Powder coated, corrosion protected steel faceplate
- Front access plate for ease of hook-up
- Order number: P6672
